Issue

Vol. 18 (2026)

Synergistic sp-C/sp-N Anchoring of Metal Single Atoms on Graphdiyne for Enhanced Microwave Absorption

https://doi.org/10.1007/s40820-026-02187-8
Yihao Fan
School of Chemistry and Chemical Engineering, Northwestern Polytechnical University, Xi’an 710072, People’s Republic of China
Haichuan Cheng
School of Chemistry and Chemical Engineering, Northwestern Polytechnical University, Xi’an 710072, People’s Republic of China
Pengyu Deng
School of Chemistry and Chemical Engineering, Northwestern Polytechnical University, Xi’an 710072, People’s Republic of China
Jianfeng Wu
School of Chemistry and Chemical Engineering, Northwestern Polytechnical University, Xi’an 710072, People’s Republic of China
Baoliang Zhang
School of Chemistry and Chemical Engineering, Northwestern Polytechnical University, Xi’an 710072, People’s Republic of China

Corresponding Author: Baoliang Zhang

blzhang@nwpu.edu.cn

Nano-Micro Letters, Vol. 18 (2026), Article Number: 345

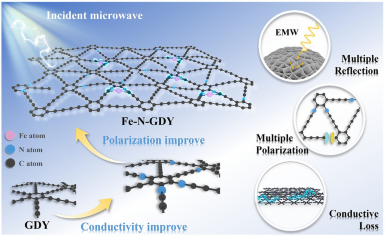

Abstract

Enhancing the conduction and polarization properties of the emerging two-dimensional carbon material graphdiyne (GDY) represents a crucial step in broadening its application in microwave absorption. A novel strategy was proposed to improve the microwave absorption performance of GDY through precise regulation of single-atom structures. Using three-dimensional spherical GDY as a substrate, Two Fe single-atom absorbers were successfully constructed: one anchored by Fe–N-GDY (FeN2C2) via sp-N/sp-C cooperative coordination, and the other anchored by Fe-GDY (FeC4) via sp-C coordination alone. Combined experimental characterization and theoretical calculations revealed that the FeN2C2 configuration induces stronger charge transfer and dipole polarization. This effect synergistically optimizes both the dielectric loss and impedance matching of the material. Consequently, the optimal sample Fe–N-GDY achieved an effective absorption bandwidth of 5.98 GHz at a matched thickness of 2.0 mm, with a minimum reflection loss of −51.2 dB. The strategy was further extended to multiple 3d transition metals (Cr, Mn, Co, Ni, Cu, and Zn). Results indicate that Group VIII elements (Fe, Co, Ni) exhibit superior performance in practical materials due to their electronic structures that favor balancing polarization and conduction losses. Radar cross section simulations confirm the exceptional attenuation capabilities of this series of absorbers in real-world scenarios. This work not only pioneers new applications for GDY in microwave absorption but also establishes a theoretical foundation for rationally designing atomically precise electromagnetic functional materials by revealing the “single-atom structure–property” correlation.


Highlights:
1 The metal single-atom doping strategy was systematically applied to graphdiyne (GDY), an emerging two-dimensional carbon material, and a series of M-N-GDY single-atom microwave absorbers were successfully fabricated for the first time.
2 Combining X-ray absorption fine structure and density functional theory calculations, the influence of the central atom coordination structure (FeN2C2, FeC4) on the overall electronic properties was elucidated.
3 The optimal sample Fe-N-GDY achieved an effective absorption bandwidth of 5.98 GHz at a matched thickness of 2.0 mm, with a minimum reflection loss of -51.2 dB.

Keywords

Graphdiyne Microwave absorption Single atoms FeN2C2 Nanosphere
Fan, Yihao, Haichuan Cheng, Pengyu Deng, Jianfeng Wu, and Baoliang Zhang. 2026. “Synergistic Sp-C/Sp-N Anchoring of Metal Single Atoms on Graphdiyne for Enhanced Microwave Absorption”. Nano-Micro Letters 18 (April):345. https://doi.org/10.1007/s40820-026-02187-8.
Download Citation
Endnote/Zotero/Mendeley (RIS)
BibTeX
References
  1. W. Yang, B. Jiang, S. Che, L. Yan, Z.-X. Li et al., Research progress on carbon-based materials for electromagnetic wave absorption and the related mechanisms. New Carbon Mater. 36(6), 1016–1030 (2021). https://doi.org/10.1016/S1872-5805(21)60095-1
  2. Y. Li, Y. Jin, H. Raza, Y. Wang, Q. Chen et al., Dual driving strategy from micro-polarization to macroscopic conductance: tailoring optimized low-frequency and wide-band microwave absorption in high-entropy oxides. J. Mater. Sci. Technol. 235, 110–121 (2025). https://doi.org/10.1016/j.jmst.2025.02.011
  3. Y. Jin, J. Cheng, S. Jiang, X. Zou, Y. Wang et al., Conductance reinforced relaxation attenuation with strong metal-N coordination in multivariate π-conjugated MOFs for integrated radar-infrared camouflage. Adv. Mater. 37(32), 2501330 (2025). https://doi.org/10.1002/adma.202501330
  4. H. Zhang, T. Liu, Z. Huang, J. Cheng, H. Wang et al., Engineering flexible and green electromagnetic interference shielding materials with high performance through modulating WS2 nanosheets on carbon fibers. J. Materiomics 8(2), 327–334 (2022). https://doi.org/10.1016/j.jmat.2021.09.003
  5. Y. Xia, W. Gao, C. Gao, A review on graphene-based electromagnetic functional materials: electromagnetic wave shielding and absorption. Adv. Funct. Mater. 32(42), 2204591 (2022). https://doi.org/10.1002/adfm.202204591
  6. Q. Li, Z. Zhang, L. Qi, Q. Liao, Z. Kang et al., Toward the application of high frequency electromagnetic wave absorption by carbon nanostructures. Adv. Sci. 6(8), 1801057 (2019). https://doi.org/10.1002/advs.201801057
  7. Z. Wu, H.-W. Cheng, C. Jin, B. Yang, C. Xu et al., Dimensional design and core–shell engineering of nanomaterials for electromagnetic wave absorption. Adv. Mater. 34(11), 2107538 (2022). https://doi.org/10.1002/adma.202107538
  8. M. Qin, L. Zhang, H. Wu, Dielectric loss mechanism in electromagnetic wave absorbing materials. Adv. Sci. 9(10), 2105553 (2022). https://doi.org/10.1002/advs.202105553
  9. H. Wang, X. Xiao, S. Zhai, C. Xue, G. Zheng et al., Spontaneous orientation polarization of anisotropic equivalent dipoles harnessed by entropy engineering for ultra-thin electromagnetic wave absorber. Nano-Micro Lett. 17(1), 19 (2024). https://doi.org/10.1007/s40820-024-01507-0
  10. M. Han, Y. Yang, W. Liu, Z. Zeng, J. Liu, Recent advance in three-dimensional porous carbon materials for electromagnetic wave absorption. Sci. China Mater. 65(11), 2911–2935 (2022). https://doi.org/10.1007/s40843-022-2153-7
  11. S. Zhang, D. Lan, J. Zheng, J. Kong, J. Gu et al., Perspectives of nitrogen-doped carbons for electromagnetic wave absorption. Carbon 221, 118925 (2024). https://doi.org/10.1016/j.carbon.2024.118925
  12. M. He, X. Zhong, X. Lu, J. Hu, K. Ruan et al., Excellent low-frequency microwave absorption and high thermal conductivity in polydimethylsiloxane composites endowed by Hydrangea-like CoNi@BN heterostructure fillers. Adv. Mater. 36(48), 2410186 (2024). https://doi.org/10.1002/adma.202410186
  13. C. Liu, J. Lin, N. Wu, C. Weng, M. Han et al., Perspectives for electromagnetic wave absorption with graphene. Carbon 223, 119017 (2024). https://doi.org/10.1016/j.carbon.2024.119017
  14. F. Ren, H. Yu, L. Wang, M. Saleem, Z. Tian et al., Current progress on the modification of carbon nanotubes and their application in electromagnetic wave absorption. RSC Adv. 4(28), 14419–14431 (2014). https://doi.org/10.1039/C3RA46989A
  15. Q. Zhang, D. Lan, S. Deng, J. Gu, Y. Wang et al., Constructing multiple heterogeneous interfaces in one-dimensional carbon fiber materials for superior electromagnetic wave absorption. Carbon 226, 119233 (2024). https://doi.org/10.1016/j.carbon.2024.119233
  16. S.-H. Kim, S.-Y. Lee, Y. Zhang, S.-J. Park, J. Gu, Carbon-based radar absorbing materials toward stealth technologies. Adv. Sci. 10(32), 2303104 (2023). https://doi.org/10.1002/advs.202303104
  17. Y. Han, Y. Yang, T. Li, Y. Zhang, H. Guo et al., Hierarchical heterogeneous co-based magnetic absorbers for superior broadband high-efficiency microwave absorption. Adv. Funct. Mater. 36(24), e25719 (2026). https://doi.org/10.1002/adfm.202525719
  18. Y. Zhang, L. Zhang, B. Zhou, Y. Gao, B. Zhang, Polarization-driven multifunctional organohydrogels with strain sensitivity toward electromagnetic wave absorption. Nano Res. 17(6), 5688–5697 (2024). https://doi.org/10.1007/s12274-024-6403-0
  19. K. Zhang, Y. Liu, Y. Liu, Y. Yan, G. Ma et al., Tracking regulatory mechanism of trace Fe on graphene electromagnetic wave absorption. Nano-Micro Lett. 16(1), 66 (2024). https://doi.org/10.1007/s40820-023-01280-6
  20. Y. Yan, K. Zhang, G. Qin, B. Gao, T. Zhang et al., Phase engineering on MoS2 to realize dielectric gene engineering for enhancing microwave absorbing performance. Adv. Funct. Mater. 34(32), 2316338 (2024). https://doi.org/10.1002/adfm.202316338
  21. X. Xiong, H. Zhang, H. Lv, L. Yang, G. Liang et al., Recent progress in carbon-based materials and loss mechanisms for electromagnetic wave absorption. Carbon 219, 118834 (2024). https://doi.org/10.1016/j.carbon.2024.118834
  22. B. Jiang, C. Qi, H. Yang, X. Wu, W. Yang et al., Recent advances of carbon-based electromagnetic wave absorption materials facing the actual situations. Carbon 208, 390–409 (2023). https://doi.org/10.1016/j.carbon.2023.04.002
  23. Z. Liu, Q. Li, K. Zhao, S. Wang, M. Ahmad et al., Ordered mesoporous multishell composite microspheres with controlled loading of magnetic ps for enhanced electromagnetic wave absorption performance. Ind. Eng. Chem. Res. 64(3), 1635–1645 (2025). https://doi.org/10.1021/acs.iecr.4c04325
  24. J. Zhou, X. Gao, R. Liu, Z. Xie, J. Yang et al., Synthesis of graphdiyne nanowalls using acetylenic coupling reaction. J. Am. Chem. Soc. 137(24), 7596–7599 (2015). https://doi.org/10.1021/jacs.5b04057
  25. Y. Fang, Y. Liu, L. Qi, Y. Xue, Y. Li, 2D graphdiyne: an emerging carbon material. Chem. Soc. Rev. 51(7), 2681–2709 (2022). https://doi.org/10.1039/d1cs00592h
  26. X. Zheng, S. Chen, J. Li, H. Wu, C. Zhang et al., Two-dimensional carbon graphdiyne: advances in fundamental and application research. ACS Nano 17(15), 14309–14346 (2023). https://doi.org/10.1021/acsnano.3c03849
  27. X. Gao, H. Liu, D. Wang, J. Zhang, Graphdiyne: synthesis, properties, and applications. Chem. Soc. Rev. 48(3), 908–936 (2019). https://doi.org/10.1039/c8cs00773j
  28. J. Xiao, M. He, B. Zhan, H. Guo, J.-L. Yang et al., Multifunctional microwave absorption materials: construction strategies and functional applications. Mater. Horiz. 11(23), 5874–5894 (2024). https://doi.org/10.1039/d4mh00793j
  29. Y. Fan, B. Zhou, H. Xing, L. Zhang, J. Wu et al., Multidimensional co-design and performance-mechanism study of novel graphdiyne composites with microwave absorbing structures. Small 21(19), 2500132 (2025). https://doi.org/10.1002/smll.202500132
  30. Z. Zhang, Y. Kong, J. Zhang, J. Hou, M. Cao et al., Recent progress of microwave absorption motivated by metal single atoms anchored on two-dimensional materials. Carbon 235, 120095 (2025). https://doi.org/10.1016/j.carbon.2025.120095
  31. X.-C. Zhang, M. Zhang, M.-Q. Wang, L. Chang, L. Li et al., Metal single-atoms toward electromagnetic wave-absorbing materials: insights and perspective. Adv. Funct. Mater. 34(44), 2405972 (2024). https://doi.org/10.1002/adfm.202405972
  32. K. Zhang, Y. Yan, Z. Wang, G. Ma, D. Jia et al., Integration of electrical properties and polarization loss modulation on atomic Fe-N-RGO for boosting electromagnetic wave absorption. Nano-Micro Lett. 17(1), 46 (2024). https://doi.org/10.1007/s40820-024-01518-x
  33. G. Qin, Y. Liu, Y. Yan, G. Ma, B. Gao et al., Continuously adjustable impedance gradient in laminar aerogels: synergizing matching and multi-position attenuation for broadband absorption. Adv. Funct. Mater. 36(12), e19796 (2026). https://doi.org/10.1002/adfm.202519796
  34. Y. Yan, Z. Cheng, T. Chen, E. Zhou, B. Gao et al., Rational high-entropy doping strategy via modularin situ/post solvothermal doping integration for microwave absorption. J. Adv. Ceram. 14(10), 9221168 (2025). https://doi.org/10.26599/jac.2025.9221168
  35. C. Gao, J. Low, R. Long, T. Kong, J. Zhu et al., Heterogeneous single-atom photocatalysts: fundamentals and applications. Chem. Rev. 120(21), 12175–12216 (2020). https://doi.org/10.1021/acs.chemrev.9b00840
  36. X. Zhang, Y. Shi, J. Xu, Q. Ouyang, X. Zhang et al., Identification of the intrinsic dielectric properties of metal single atoms for electromagnetic wave absorption. Nano-Micro Lett. 14(1), 27 (2021). https://doi.org/10.1007/s40820-021-00773-6
  37. J. Xu, M. Liu, X. Zhang, B. Li, X. Zhang et al., Atomically dispersed cobalt anchored on N-doped graphene aerogels for efficient electromagnetic wave absorption with an ultralow filler ratio. Appl. Phys. Rev. 9, 011402 (2022). https://doi.org/10.1063/5.0067791
  38. Y. Sun, Y. Shi, X. Zhang, F. Cao, L. Huang et al., Pb single-atoms on nitrogen-doped graphene hollow spheres for electromagnetic wave absorption. Carbon 240, 120352 (2025). https://doi.org/10.1016/j.carbon.2025.120352
  39. H. Fei, J. Dong, D. Chen, T. Hu, X. Duan et al., Single atom electrocatalysts supported on graphene or graphene-like carbons. Chem. Soc. Rev. 48(20), 5207–5241 (2019). https://doi.org/10.1039/c9cs00422j
  40. J. Li, L. Zhong, L. Tong, Y. Yu, Q. Liu et al., Atomic Pd on graphdiyne/graphene heterostructure as efficient catalyst for aromatic nitroreduction. Adv. Funct. Mater. 29(43), 1905423 (2019). https://doi.org/10.1002/adfm.201905423
  41. Y. Xue, B. Huang, Y. Yi, Y. Guo, Z. Zuo et al., Anchoring zero valence single atoms of nickel and iron on graphdiyne for hydrogen evolution. Nat. Commun. 9(1), 1460 (2018). https://doi.org/10.1038/s41467-018-03896-4
  42. M. Li, Q. Lv, W. Si, Z. Hou, C. Huang, Sp-hybridized nitrogen as new anchoring sites of iron single atoms to boost the oxygen reduction reaction. Angew. Chem. Int. Ed. 61(38), e202208238 (2022). https://doi.org/10.1002/anie.202208238
  43. S.-L. Li, M. Peng, Y. Song, Y. Chen, L. Qiao et al., Screening transition metal and nonmetal atoms Co-doped graphyne as efficient single-atom catalysts for nitrogen reduction. Chem. Eng. J. 495, 153275 (2024). https://doi.org/10.1016/j.cej.2024.153275
  44. Z. Sun, Z. Yan, Z. Guo, H. Liu, L. Zhao et al., A synergistic route of heterointerface and metal single-atom configurations towards enhancing microwave absorption. Chem. Eng. J. 452, 139430 (2023). https://doi.org/10.1016/j.cej.2022.139430
  45. J. Yu, W. Chen, F. He, W. Song, C. Cao, Electronic oxide–support strong interactions in the graphdiyne-supported cuprous oxide nanocluster catalyst. J. Am. Chem. Soc. 145(3), 1803–1810 (2023). https://doi.org/10.1021/jacs.2c10976
  46. C.S. Chern, Emulsion polymerization mechanisms and kinetics. Prog. Polym. Sci. 31(5), 443–486 (2006). https://doi.org/10.1016/j.progpolymsci.2006.02.001
  47. X. Zeng, X. Cheng, R. Yu, G.D. Stucky, Electromagnetic microwave absorption theory and recent achievements in microwave absorbers. Carbon 168, 606–623 (2020). https://doi.org/10.1016/j.carbon.2020.07.028
  48. H. Bao, L. Wang, C. Li, J. Luo, Structural characterization and identification of graphdiyne and graphdiyne-based materials. ACS Appl. Mater. Interfaces 11(3), 2717–2729 (2019). https://doi.org/10.1021/acsami.8b05051
  49. C. Huang, Y. Li, N. Wang, Y. Xue, Z. Zuo et al., Progress in research into 2D graphdiyne-based materials. Chem. Rev. 118(16), 7744–7803 (2018). https://doi.org/10.1021/acs.chemrev.8b00288
  50. Y. Zhao, N. Yang, H. Yao, D. Liu, L. Song et al., Stereodefined codoping of sp-N and S atoms in few-layer graphdiyne for oxygen evolution reaction. J. Am. Chem. Soc. 141(18), 7240–7244 (2019). https://doi.org/10.1021/jacs.8b13695
  51. X. Wang, X. Hu, L. Zheng, Q. Lv, J. He et al., The synthesis of MNC5 active site for electrochemical catalysis. Nano Energy 117, 108919 (2023). https://doi.org/10.1016/j.nanoen.2023.108919
  52. A.C. Ferrari, J. Robertson, Interpretation of Raman spectra of disordered and amorphous carbon. Phys. Rev. B 61(20), 14095–14107 (2000). https://doi.org/10.1103/physrevb.61.14095
  53. B. Gao, Y. Yan, K. Zhang, D. Liu, X. Huang, Ultralight broadband electromagnetic wave absorption enabled by interface-engineered two-layered periodic carbon fiber fabrics. Adv. Funct. Mater. (2026). https://doi.org/10.1002/adfm.202532108
  54. Z. Feng, Y. Ma, Y. Li, R. Li, J. Liu et al., Importance of heteroatom doping site in tuning the electronic structure and magnetic properties of graphdiyne. Phys. E Low Dimension. Syst. Nanostruct. 114, 113590 (2019). https://doi.org/10.1016/j.physe.2019.113590
  55. Y. Zhao, J. Wan, H. Yao, L. Zhang, K. Lin et al., Few-layer graphdiyne doped with sp-hybridized nitrogen atoms at acetylenic sites for oxygen reduction electrocatalysis. Nat. Chem. 10(9), 924–931 (2018). https://doi.org/10.1038/s41557-018-0100-1
  56. Y. Fu, Y. Wang, J. Cheng, Y. Li, J. Wang et al., Manipulating polarization attenuation in NbS2–NiS2 nanoflowers through homogeneous heterophase interface engineering toward microwave absorption with shifted frequency bands. Nano Mater. Sci. 6(6), 794–804 (2024). https://doi.org/10.1016/j.nanoms.2024.05.003
  57. T. Chen, Y. Yan, S. Liu, Z. Cheng, B. Gao et al., Lightweight and flexible fabric assembled by ANF/GMWCNT fibers for broadband electromagnetic wave absorption. Adv. Funct. Mater. (2025). https://doi.org/10.1002/adfm.202528094
  58. L. Fan, H. Ai, M. Jiao, Y. Li, Y. Jin et al., Low-frequency and dual-band microwave absorption properties of novel VB-group disulphides (3R–TaS2) nanosheets. Nano Mater. Sci. 6(5), 635–646 (2024). https://doi.org/10.1016/j.nanoms.2024.05.011
  59. J. Qi, C. Liang, K. Ruan, M. Li, H. Guo et al., Cactus-like architecture for synergistic microwave absorption and thermal management. Natl. Sci. Rev. 12(11), nwaf394 (2025). https://doi.org/10.1093/nsr/nwaf394
  60. K. Yang, Y. Cui, L. Wan, Q. Zhang, B. Zhang, MOF-derived magnetic-dielectric balanced Co@ZnO@N-doped carbon composite materials for strong microwave absorption. Carbon 190, 366–375 (2022). https://doi.org/10.1016/j.carbon.2022.01.032
  61. F. Wu, K. Yang, Q. Li, T. Shah, M. Ahmad et al., Biomass-derived 3D magnetic porous carbon fibers with a helical/chiral structure toward superior microwave absorption. Carbon 173, 918–931 (2021). https://doi.org/10.1016/j.carbon.2020.11.088
  62. H. Xu, G. Zhang, Y. Wang, M. Ning, B. Ouyang et al., Size-dependent oxidation-induced phase engineering for MOFs derivatives via spatial confinement strategy toward enhanced microwave absorption. Nano-Micro Lett. 14(1), 102 (2022). https://doi.org/10.1007/s40820-022-00841-5
  63. J. Xiong, Z. Xiang, J. Zhao, L. Yu, E. Cui et al., Layered NiCo alloy nanops/nanoporous carbon composites derived from bimetallic MOFs with enhanced electromagnetic wave absorption performance. Carbon 154, 391–401 (2019). https://doi.org/10.1016/j.carbon.2019.07.096
  64. Y. Lü, Y. Wang, H. Li, Y. Lin, Z. Jiang et al., MOF-derived porous Co/C nanocomposites with excellent electromagnetic wave absorption properties. ACS Appl. Mater. Interfaces 7(24), 13604–13611 (2015). https://doi.org/10.1021/acsami.5b03177
  65. C. Xu, K. Luo, Y. Du, X. Lv, C. Zhang et al., Nano-heterointerface coupling engineering induced electromagnetic response by tailored spindle arrays for microwave absorption. Adv. Funct. Mater. 35(52), e12806 (2025). https://doi.org/10.1002/adfm.202512806
  66. J. Li, Y. Tao, S. Rao, W. Ma, M. Li et al., Core–shell rGO-BN heterostructures endowing polybutadiene composites with high thermal conductivity and efficient microwave absorption. Adv. Funct. Mater. 35(51), e08494 (2025). https://doi.org/10.1002/adfm.202508494
  67. C. Zhou, C. Wu, D. Liu, M. Yan, Metal-organic framework derived hierarchical Co/C@V2O3 hollow spheres as a thin, lightweight, and high-efficiency electromagnetic wave absorber. Chem. Eur. J. 25(9), 2234–2241 (2019). https://doi.org/10.1002/chem.201805565
  68. Y. Wang, W. Zhang, X. Wu, C. Luo, Q. Wang et al., Conducting polymer coated metal-organic framework nanops: facile synthesis and enhanced electromagnetic absorption properties. Synth. Met. 228, 18–24 (2017). https://doi.org/10.1016/j.synthmet.2017.04.009
  69. M. Huang, B. Li, Y. Qian, L. Wang, H. Zhang et al., MOFs-derived strategy and ternary alloys regulation in flower-like magnetic-carbon microspheres with broadband electromagnetic wave absorption. Nano-Micro Lett. 16(1), 245 (2024). https://doi.org/10.1007/s40820-024-01416-2
  70. N. Qu, G. Xu, Y. Liu, M. He, R. Xing et al., Multi-scale design of metal–organic framework metamaterials for broad-band microwave absorption. Adv. Funct. Mater. 35(18), 2402923 (2025). https://doi.org/10.1002/adfm.202402923
